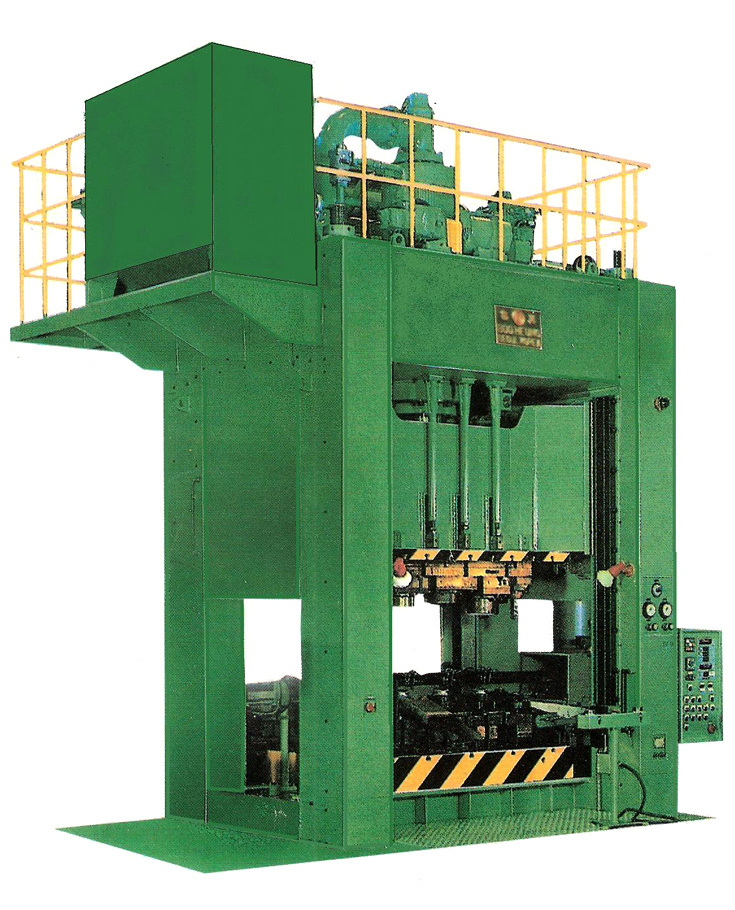

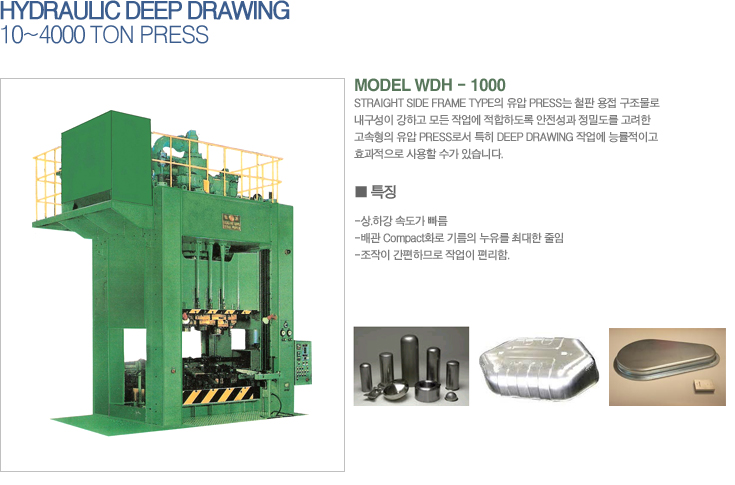

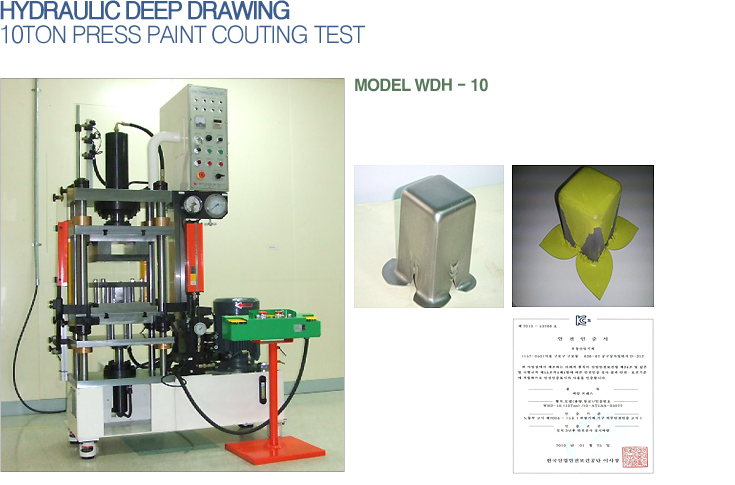

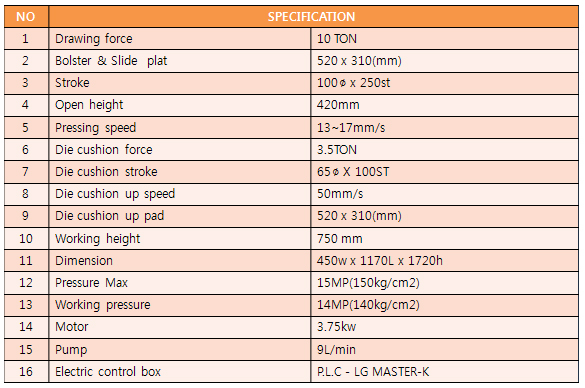

DEEP DRAWING PRESS
HOME > BOARD > DEEP DRAWING PRESS




SPECIFICATIONS


WDH-

 100
WDH-

 150
WDH-

 200
WDH-

 300
WDH-

 500
WDH-

 1000
WDH-

 2000
WDH-

 4000
CAPACITY TON 100 150 200 300 500 1000 2000 4000
LIFTING

CAPACITY
TON 6 12 15 20 30 40 100 250
STROKE

 LENGTH
mm 400 700 750 1000 1000 1200 1700 1000
DAY LIGHT mm 600 880 950 1300 1500 1800 2300 1900
BOLSTER SIZE mm 1000x800 1200x1000 1200x1000 1500x1200 2000x1500 3000x2000 3500x2400 13000 x1800
SLIDE SIZE mm “ “ “ “ “ “ “ “
DOWN SPEED mm/s 200~300 200~300 250~300 180~230 180~200 150~200 150~200 145~150
PRESSING

 SPEED
mm/s 20~30 10~22 15~25 15~20 7~12 6~10 5~8 9
UP SPEED mm/s 200~300 250~300 180~230 150~200 150~200 150~200 150~200 145~150
MAIN MOTOR kw 22 22 30 37 50 75 110 310
D/C CAPACITY TON 50 75 100 150 250 500 750 1200
D/C STROKE  mm 200 300 300 350 400 500 600 300
D/C PAD SIZE mm 700x400 800X600 800x600 1200x800 1600x1200 1800x1500 2000X1600 4000X1000
D/C LIFTING

SPEED
mm/s 80 80 80 80 80 80 80 78
D/C MOTOR Kw 3.7 3.7 3.7 5.5 7.5 11 15 50
OIL TANK

 CAPACITY
L 400 600 800 1000 1600 2400 3000 6000
